Aquarium PVC-U Imperial Tank Connectors

Click/Tap for further info or to buy

Part No: 9590

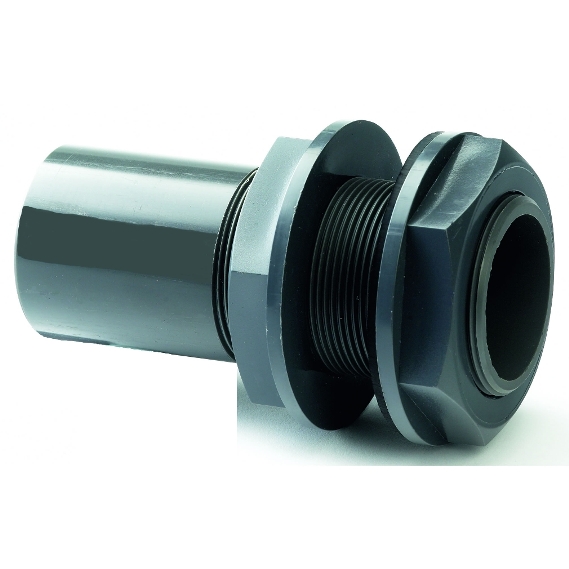

1/2 INCH PVC-U TANK CONNECTOR

Description: ½ inch PVC-U Tank Connector. Hole required 22-28mm. The stem end of the fitting is 21.2mm so you will need a ½ inch joint socket to connect your pipe to it. The threaded end is ½ inch BSP male thread and if you wish to connect to this end you will need a fitting with a ½ inch female thread. Example: A threaded connector. With the locking nut at the end of the thread the maximum panel thickness is 15mm. This fitting is best installed with the thread inside the aquarium
In Stock
Price: £3.93

Part No: 9591

3/4 INCH PVC-U TANK CONNECTOR

Description: ¾ inch Tank Connector. Hole required 27-30mm. The stem end of the fitting is 26.6mm so you will need a ¾ inch joint socket to connect your pipe to it. The threaded end is ¾ inch BSP male thread and if you wish to connect to this end you will need a fitting with a ¾ inch female thread. Example: A threaded connector. With the locking nut at the end of the thread the maximum panel thickness is 12mm. This fitting is best installed with the thread inside the aquarium.
In Stock
Price: £4.38

Part No: 9592

1 INCH PVC-U TANK CONNECTOR

Description: 1 inch Tank Connector. Hole required 34-39mm. The stem end of the fitting is 33.4mm so you will need a 1 inch joint socket to connect your pipe to it. The threaded end is 1 inch BSP male thread and if you wish to connect to this end you will need a fitting with a 1 inch female thread. Example: A threaded connector. With the locking nut at the end of the thread the maximum panel thickness is 20mm. This fitting is best installed with the thread inside the aquarium.
In Stock
Price: £8.05

Part No: 9593

1¼ INCH PVC-U TANK CONNECTOR

Description: 1¼ inch Tank Connector. Hole required 43-47mm. The stem end of the fitting is 42.1mm so you will need a 1¼ inch joint socket to connect your pipe to it. The threaded end is 1¼ inch BSP male thread and if you wish to connect to this end you will need a fitting with a 1¼ inch female thread. Example: A threaded connector. With the locking nut at the end of the thread the maximum panel thickness is 30mm. This fitting is best installed with the thread inside the aquarium.
In Stock
Price: £17.82

Part No: 9594

1½ INCH PVC-U TANK CONNECTOR

Description: 1½ inch Tank Connector. Hole required 49-55mm. The stem end of the fitting is 48.1mm so you will need a 1½ inch joint socket to connect your pipe to it. The threaded end is 1½ inch BSP male thread and if you wish to connect to this end you will need a fitting with a 1½ inch female thread. Example: A threaded connector. With the locking nut at the end of the thread the maximum panel thickness is 30mm. This fitting is best installed with the thread inside the aquarium.
In Stock
Price: £19.58

Part No: 9595

2 INCH PVC-U TANK CONNECTOR

Description: 2 inch Tank Connector. Hole required 61-66mm. The stem end of the fitting is 60.2mm so you will need a 2 inch joint socket to connect your pipe to it. The threaded end is 2 inch BSP male thread and if you wish to connect to this end you will need a fitting with a 2½ inch female thread. Example: A threaded connector. With the locking nut at the end of the thread the maximum panel thickness is 30mm. This fitting is best installed with the thread inside the aquarium.
In Stock
Price: £23.43
